Full Extension Undermount Drawer Slide Assembly Machine GLU01
◉Required space: About 3 x 2 x 1.8 m
◉Surface of mechanical parts: hard chrome plating
◉Applicable specification: 200mm-650mm
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8Mpa
◉Capacity: 15-20PCS/min
◉Main configuration: SMC cylinder+corresponding sensor/motor, panasonic servo, delta PLC, taiwan TBI slide, taiwan Jiulong greasing system
◉Main function: automatic assembly of buffer, pin, movable slide, fixed slide
Read More
Telescopic Slide Assembly Machine ZXS-10
◉Mechanical Parts Surface: Hard chrome plating
◉Applicable Specifications: 200-650 mm
◉Power Supply: AC220V 50-60Hz
◉Gas source: 0.5-0.8 Mpa
◉Capacity: 35-40 PCS/min
◉Required Space: About 1.5 x 1.2 x 1.6 m
◉Main function: Assembly of buffer card plastic / fork / rivet and inner rail
◉Main configuration: Lmported cylinder+Supporting sensor / Motor / Servo / PLC with Delta / Taiwan TBI slide / Slider
Read More
Ball Bearing Drawer Slide Assembly Machine ZSD01
◉Required space: About 3 x 2 x 1.7 m
◉Surface of mechanical parts: hard chrome plating
◉Applicable specification: 200-650 mm
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8 Mpa
◉Capacity: 25-33 PCS/min
◉Main configuration: SMC cylinder+corresponding sensor/motor, panasonic servo, delta PLC, taiwan TBI slide, taiwan Jiulong greasing system
◉Main function: ball bearing drawer slide and soft close drawer slide
Read More
Ball Bearing Drawer Slide Assembly Machine ZSD02
◉Required space: About 3.625 x 2.067 x 1.982 m
◉Surface of mechanical parts: hard chrome plating
◉Applicable specification: 200-650 mm
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8 Mpa
◉Capacity: 25-32 PCS/min
◉Main configuration: SMC cylinder+corresponding sensor/motor,panasonic servo, delta PLC, taiwan TBI slide, taiwan Jiulong greasing system
◉Main function: ball bearing drawer slide and soft close drawer slide
Read More
53/76mm Heavy Duty Slide Assembly Machine ZSH01
◉Space required: About 3 x 2 x 1.7 m
◉Surface of mechanical parts: hard chrome plating
◉Applicable specification: 200-650 mm
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8 Mpa
◉Capacity: 18-22 PCS/min
◉Main configuration: SMC cylinder+corresponding sensor/motor, panasonic servo, delta PLC, taiwan TBI slide, taiwan Jiulong greasing system
◉Main function: 53mm heavy duty slide and 76mm heavy duty slide
Read More
Ball Bearing Drawer Slide Assembly Machine LT01
◉Required space: About 10 x 2 x 1.8 m
◉Surface of mechanical parts: hard chrome plating
◉Applicable specification: 200-650 mm
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8 Mpa
◉Capacity: 20-28 PCS/min
◉Main configuration: Taiwan Airtek cylinder+corresponding sensor/motor, panasonic servo,delta PLC, taiwan TBI slide, taiwan Jiulong greasing system
◉Main function: undermount drawer slides automatic assembly
Read More

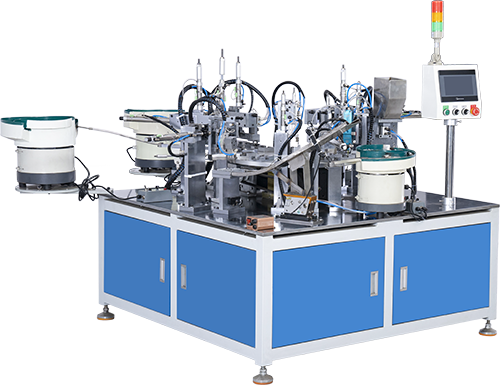

Soft-Closing Part (Telescopic Slide) Assembly Machine ZPZ01
◉Space required: About 1.6 x 1.5 x 1.5 m
◉Surface of mechanical parts: hard chrome plating
◉Power supply: 220V
◉Air source: 0.5-0.6 Mpa
◉Capacity: 20-25 PCS/min
◉Main configuration: Mitsubishi PLC, Velenton touch screen, Artek Electrical accessories
◉Main function: Slide buffer assembly automatic assembly machine
Read More

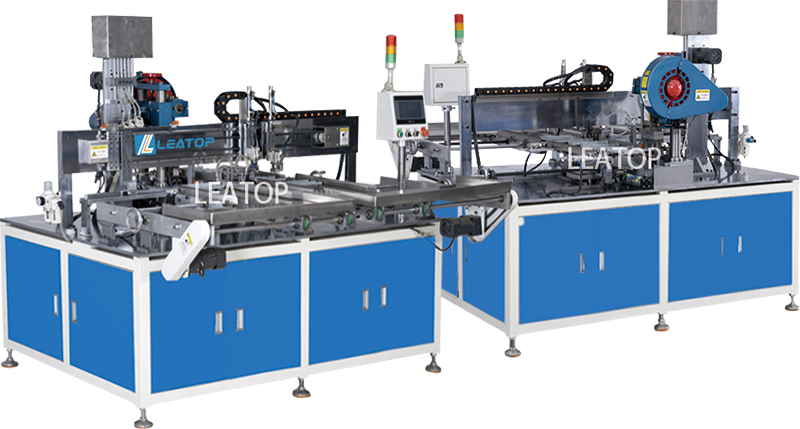

V2 Undermount Slide Assembly Machine ZXU01
◉Required space: About 3 x 2 x 1.8 m
◉Surface of mechanical parts: hard chrome plating
◉Applicable specification: 200mm-650mm
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8Mpa
◉Capacity: 15-20PCS/min
◉Main configuration: Taiwan Airtek cylinder+corresponding sensor/motor, panasonic servo, Delta PLC, taiwan TBI slide, Taiwan Jiulong greasing system
◉Main function: Undermount slides automatic assembly
Read More

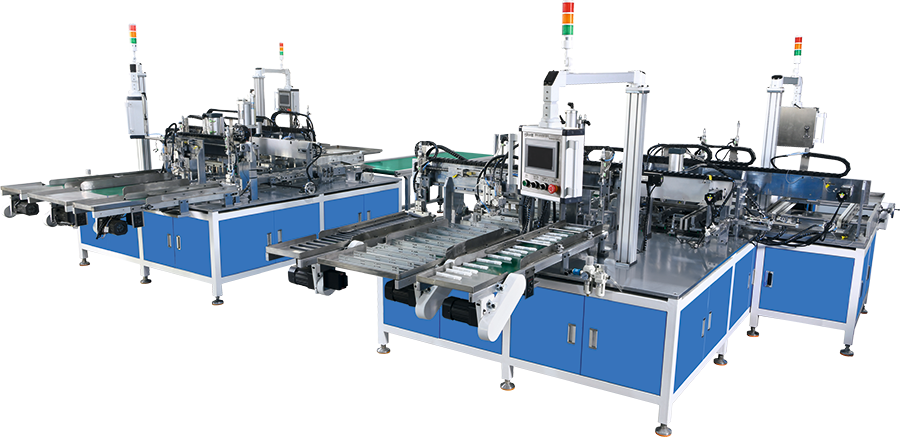

Full Extension Undermount Drawer Slide Assembly Machine LTZX02
◉Required space: About 4 x 2 x 1.8 m
◉Surface of mechanical parts: hard chrome plating
◉Applicable specification: 200mm-650mm
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8Mpa
◉Capacity: 15-20PCS/min
◉Main configuration: Taiwan AirTAC cylinder+corresponding sensor/motor, panasonic servo, delta PLC, taiwan TBI slide, taiwan Jiulong greasing system
◉Main function: undermount drawer slides automatic assembly
Read More

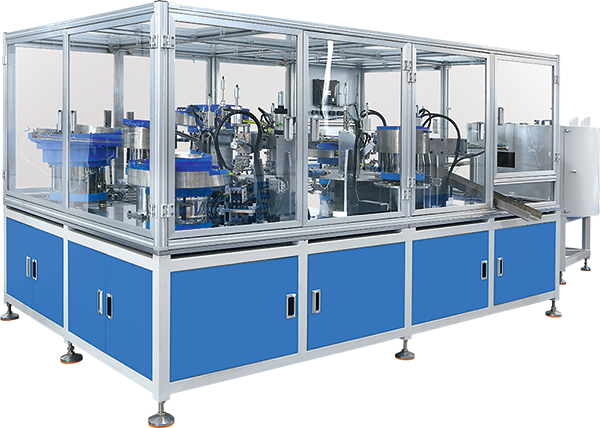

Undermount Slide Locking Part Assembly Machine LTZX03
◉Required space: About 3.8 x 2 x 1.8 m
◉Surface of mechanical parts: hard chrome plating
◉Power supply: 220V 50Hz
◉Air source: 0.6-0.8Mpa
◉Capacity: 18-23PCS/min
◉Main configuration: Taiwan AirTAC cylinder+corresponding sensor/motor, panasonic servo, Delta PLC, taiwan TBI slide, Taiwan Jiulong greasing system
◉Main Undermount Slide Locking Part Assembly
Read More
Undermount Slide Punching Machine ZXP01
◉Space required: about 6 x 2 x 1.8 m
◉Power supply: 220V
◉Air source: 0.5-0.6 Mpa
◉Capacity: 35-40 PCS / min
◉Surface of mechanical parts: hard chrome plating
◉Main configuration: Mitsubishi PLC, Velenton touch screen, Artek Electrical accessories
◉Main functions: undermount slide punching machine
Read MoreContact Info
