Common telescopic slide inner rail riveting machine length setting operation is simple, just need you to follow the process to learn.
Step 1

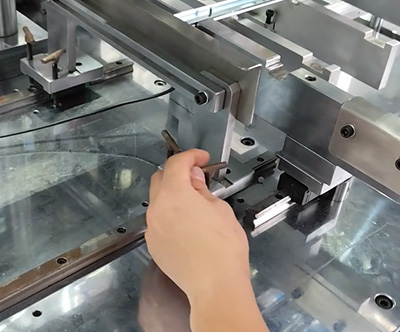

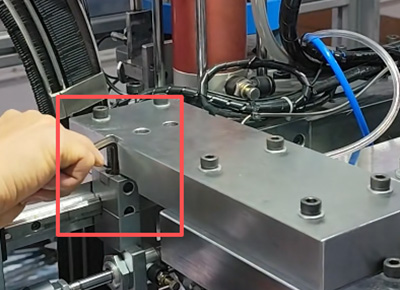

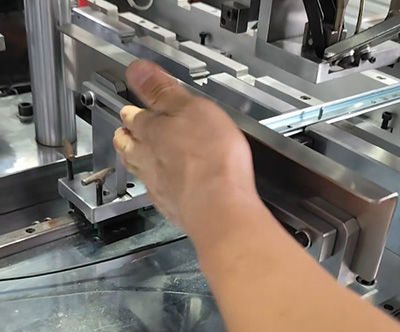

Loosen positioning Pin

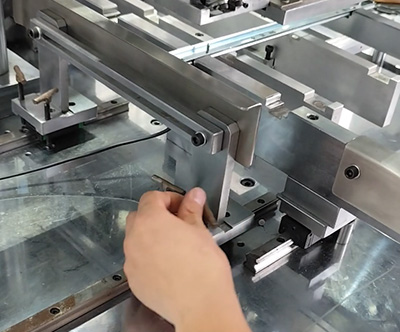

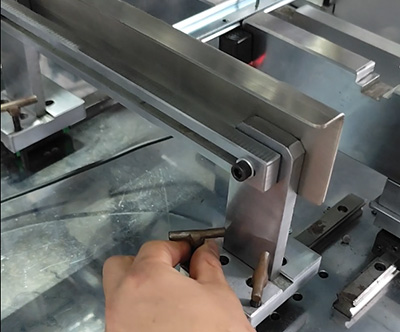

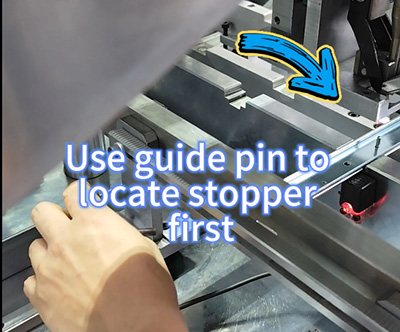

Use guide pin to locate stopper first,then adjust the positioning pin

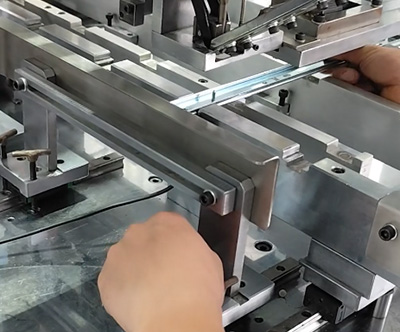

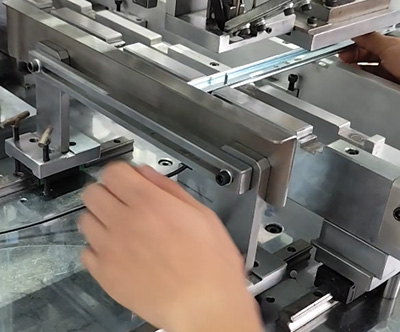

Adjust positioning stopper

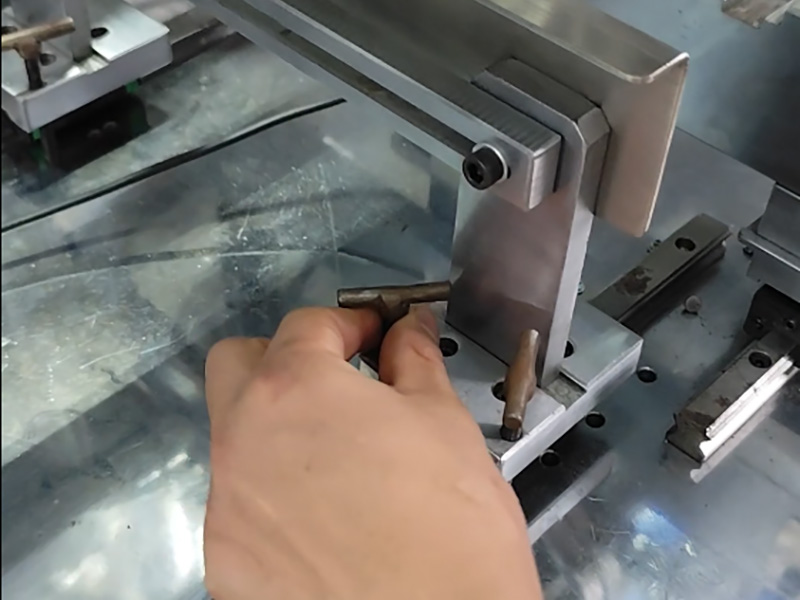

Secure the positioning pin
Only Secure one pin on each side

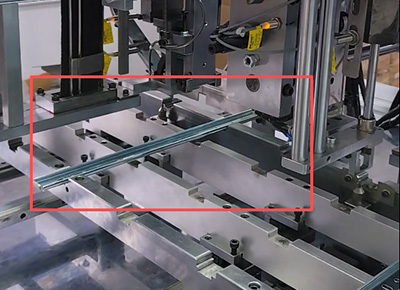

Every hole matches a rail length
Check if it fits
Step 2 Adjust middle section rail length

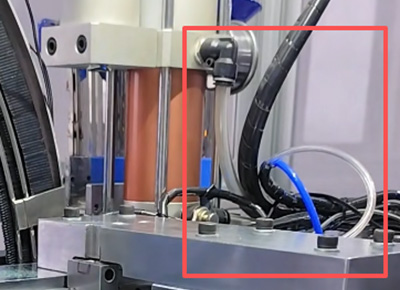

Cyliner is at home position

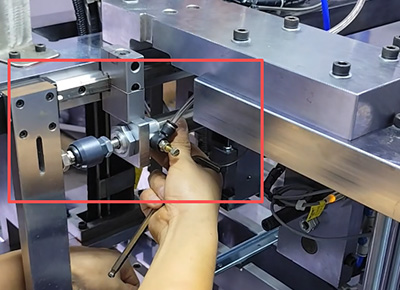

Adjust cylinder to stopper rail length

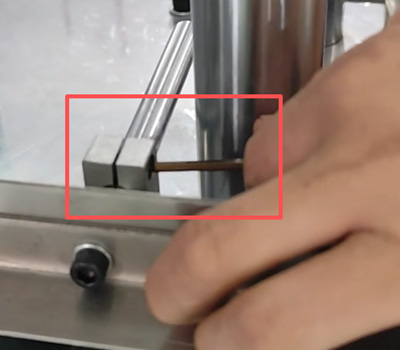

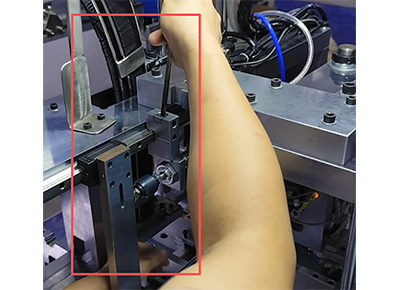

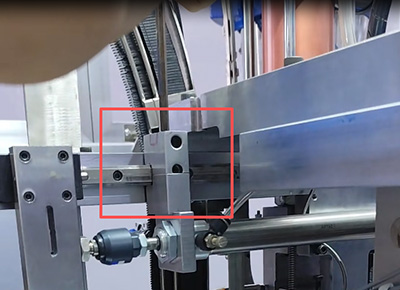

Loosen screws here

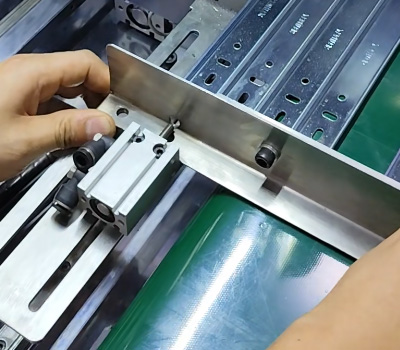

cylinder to rail:1-2mm gap
Tighten after adjustment
After adjustment,tap‘Position cylinder’on the screen
Step 3

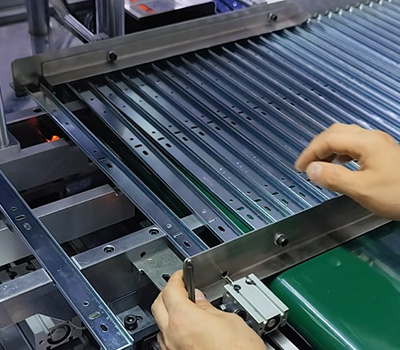

Adjust front section rail length

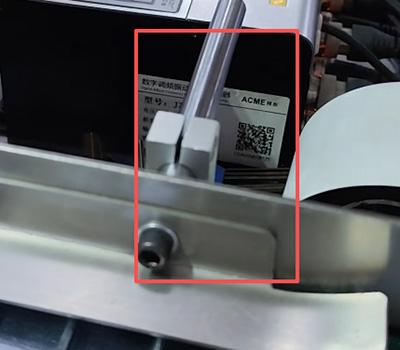

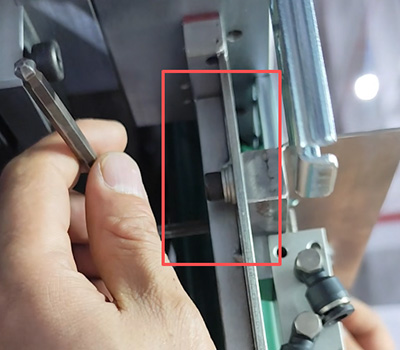

Bottom has two screws

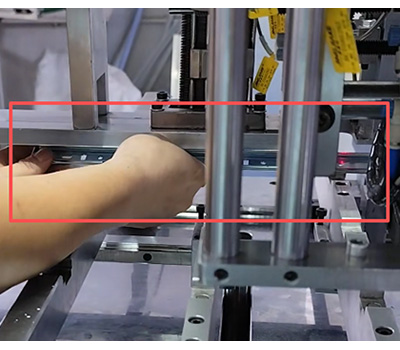

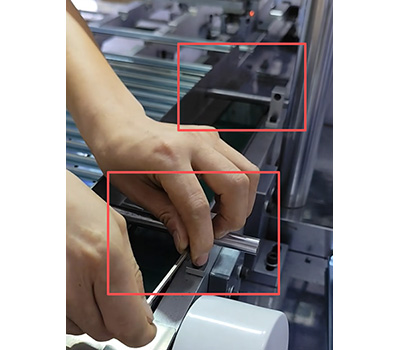

Loosen two bottom screws to adjust stopper
Loosen screws on the other side adjust stopper
Loosen screws on the other side adjust stopper
Tighten after adjustment
Setting done
