Roll Forming Machine

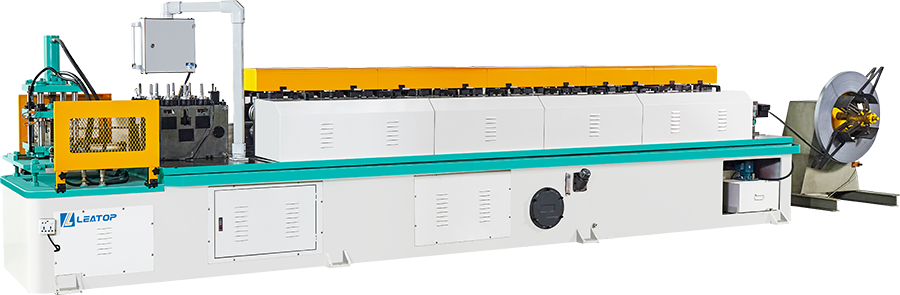

Full-Automatic Slide Roll Forming Machine WZC01

◉Size: L6200 x W1200 x H1700 mm

◉Weight: about 7 tons

◉Roller seat: integral structure, A3 plate with 40mm thickness

◉Main bearing: 6208# SKF/NSK bearing

◉Roller material: CR12MoV, center distance diameter 120mm

◉Heat treatment hardness: HRC60° - 62°

◉Forming speed: 8-15 m/min

◉Frame: 14mm steel plate welding structure, 40mm panel, overall structure

◉Main engine power: "simple drive 180st-m27020hb" servo motor

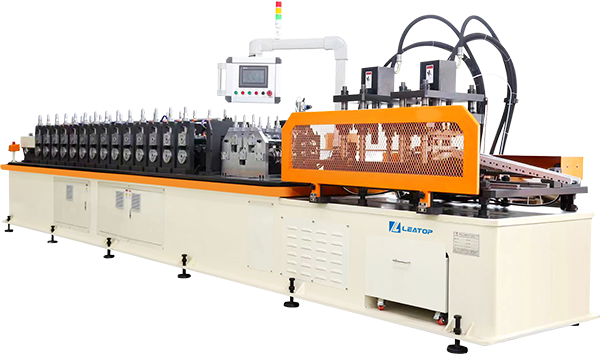

Telescopic/Tandem Slide Roll Forming Machine JY01

◉Forming speed: 10-15 m/min

◉Roller material used (SLD, DC53)

◉The equipment roller cutting accuracy length is ±0.15mm and the roller fit is ±0.02 mm

◉Main configuration: machine base, rollers, distortion correction (including distortion and side bending), servo electronic control system, hydraulic pressure, cooling system, and punch die base

◉Main functions: telescopic/tandem slide roll formling machine

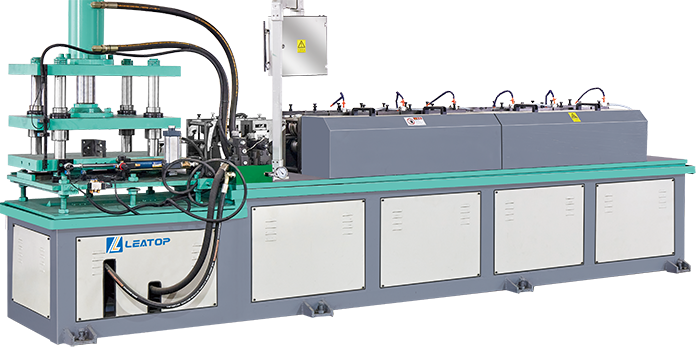

Drawer/Undermout Slide Roll Forming Machine WZC02

◉Machine size: L4500 x W800 x H1600 mm

◉Weight: About 4 tons

◉Processing technology: CNC

◉Forming speed: 8-15 m/min

◉Roller material: Cr12MoV, center distance diameter 115 mm

◉Heat treatment hardness vacuum heat treatment HRC60° - 62° degree

◉Three section guide rail machine includes: discharging frame part, main machine part and hydraulic automatic punching part

⇧
