Hinge Assembly Machine

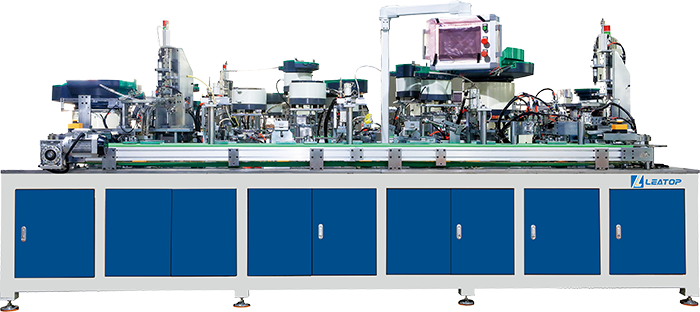

Full-Automatic Cabinet Hinge Assembly Machine ZS01

◉Japan imported SMC cylinders + supporting sensor (electronic valve, manifold, filter triple) other sensors with Panasonic

◉20MM thickness panel and spare parts surface are chrome-plated and the mold part is made of SKD11 hardened material

◉Specifications: According to the sample provided by the customer (customized)

◉Japan Mitsubishi circuit control system: 1 set (including PLC)

◉Taiwan TBI / Shangyin / CPC sliding rails, sliders

◉Demark 220W right angle gear reducer: 2 pcs

◉Demark RV reducer with 370W motor: 2 pcs

◉Energy required: power supply AC380V 50-60Hz; gas source 0.8-1.0Mpa

◉Required labor: 1 person is required to operate the machine and load

◉Capacity: 40-50 PCS/min

◉Area: about 4.2 x 2 x 1.8 m (length x width x height)

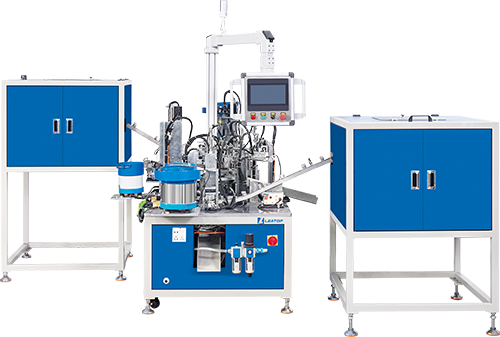

Full-Automatic Normal Hinge Assembly Machine ZP01

◉Space required: about 6000 x 1200 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 220VAC

◉Air source: 0.5-0.7Mpa

◉Capacity: 40-45 PCS/min

◉Defect rate: 3‰

◉Main functions: Ordinary hinge assembly machine

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + Delta PLC + touch screen + motor

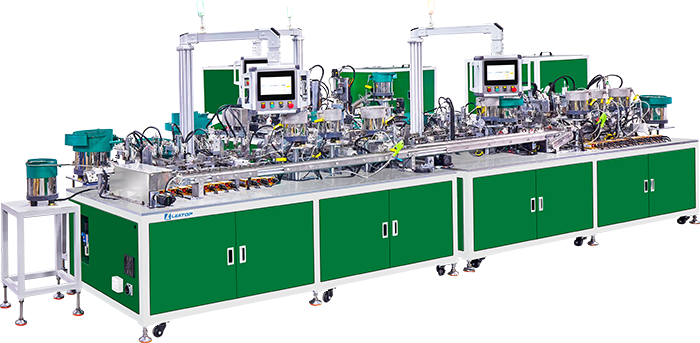

Full-Automatic Soft-Closing Hinge Assembly Machine ZP02

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 220VAC

◉Air source: 0.5-0.7Mpa

◉Defect rate: 3‰

◉Capacity: 35-42 PCS / min

◉Main function: Hinge assembly line + hinge testing machine

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + PLC + touch screen + servo motor

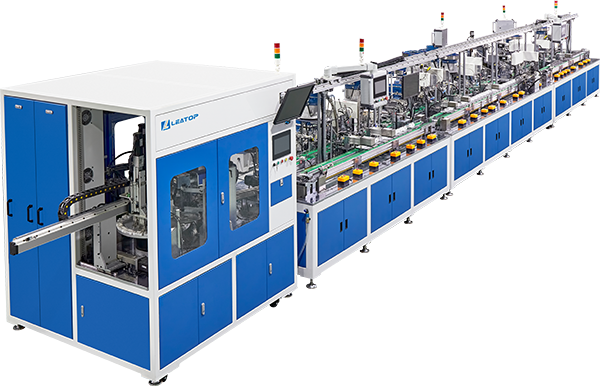

Automatic Soft-Closing Hinge Assembly Machine ZS02

◉Space required: About 10 x 4.9 x 2.1 m

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6-0.8Mpa;

◉Capacity: 40-45PCS/min

◉Main configuration: SMC cylinder+corresponding sensor/motor, panasonic servo, mitsubishi PLC,vibrator from japan

◉Main function: Automatic assembly of buffer hinge, function detection, laser marking

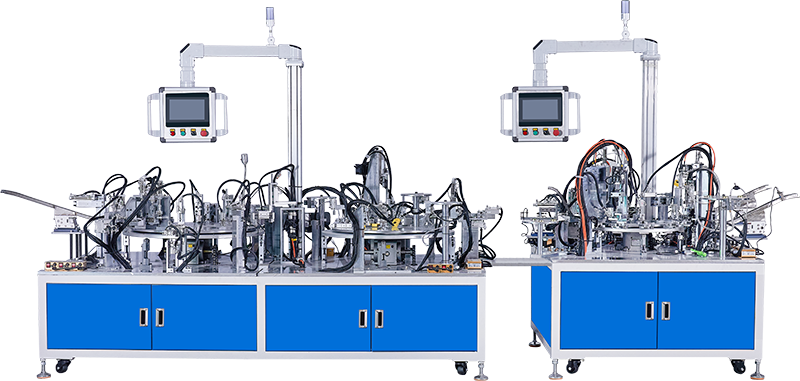

Full-Automatic Cabinet Hinge Assembly Machine ZPN01

◉Required space: About 7000 x 3200 x 2000 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6Mpa

◉Capacity: 40-45 pcs / min

◉Main function: Normal hinge assembly machine

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + PLC + touch screen + motor

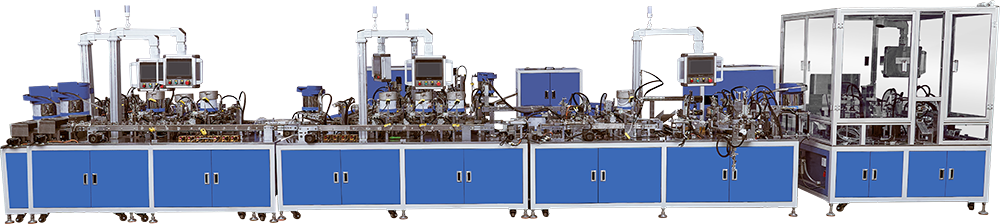

Full-Automatic Soft-Closing Hinge Assembly Machine ZPS01

◉Space required: About 12 x 4.5 x 1.8 m

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6-0.8Mpa;

◉Capacity: 38-42 PCS/min

◉Main configuration: Taiwan Airtek cylinder+corresponding sensor/motor,servo, Taiwan Delta PLC, slide block

◉Main function: automatic assembly of buffer hinge, function detection, laser marking

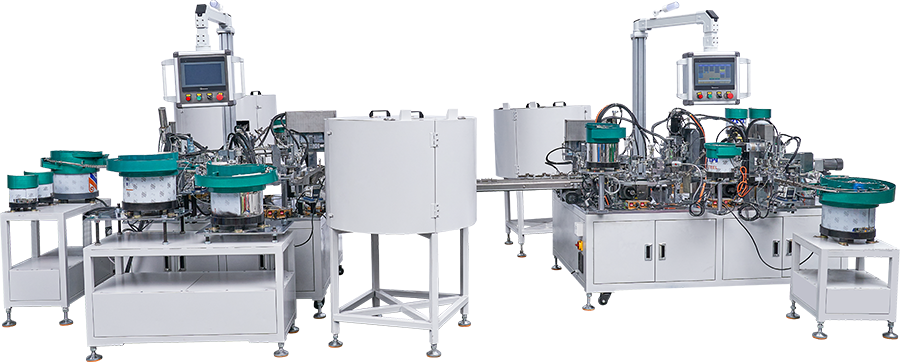

Full-Automatic Soft-Closing Hinge Assembly Machine ZPS02

◉Space required: about 6200 x 3200 x 2000 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6-0.8Mpa

◉Capacity: 30-35 PCS / min

◉Main function: Hydraulic hinge assembly machine

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + PLC + touch screen + motor

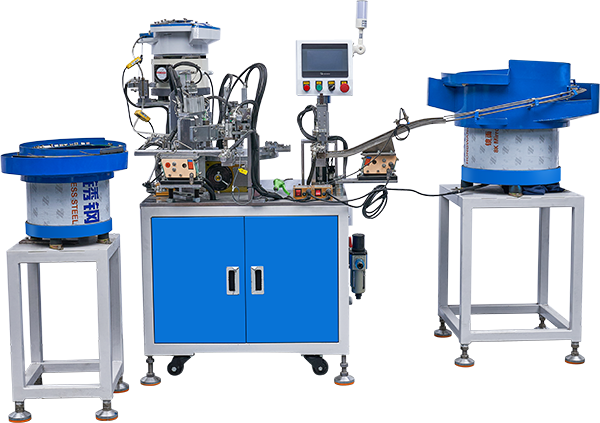

Automatic Hinge Inner Arm Assembly Machine ZPS03

◉Space required: About 2100 x 1500 x 1400 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6-0.8Mpa;

◉Capacity: 35-45 PCS/min

◉Main function: Hinge inner arm assembly

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + PLC + touch screen + motor

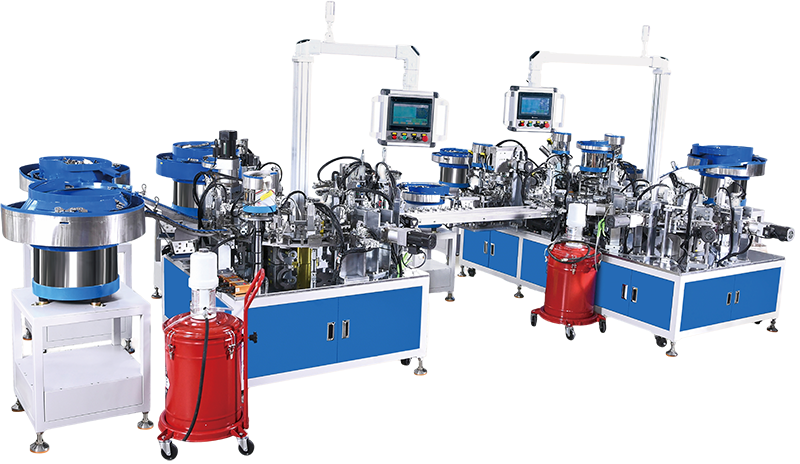

Full-Automatic Soft-closing Hinge Assembly Machine (Round Type) ZPS04

◉Space required: About 6000 x 3500 x 1800 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 220V

◉Air source: 0.5-0.7 Mpa;

◉Capacity: 35-42 PCS/min

◉Main configuration: Taiwan AirTAC cylinder + cylinder induction line + solenoid valve + PLC + servo motor + step motor + touch screen + splitter + approach switch + frequency changer

◉Main function: Fixed / Clip-on (2D) 3D, with testing function of opening and closing, seconds and mounting base

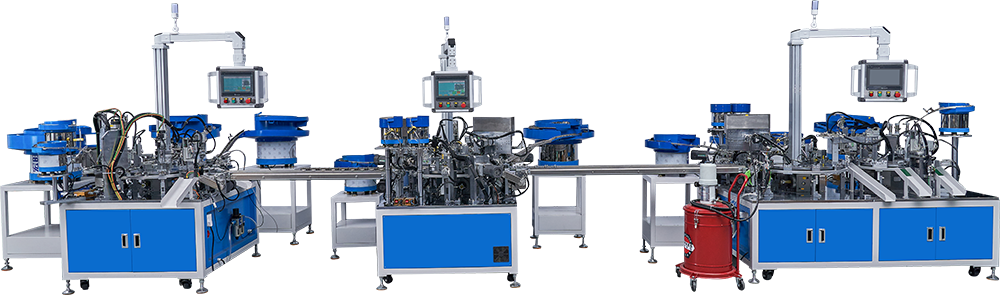

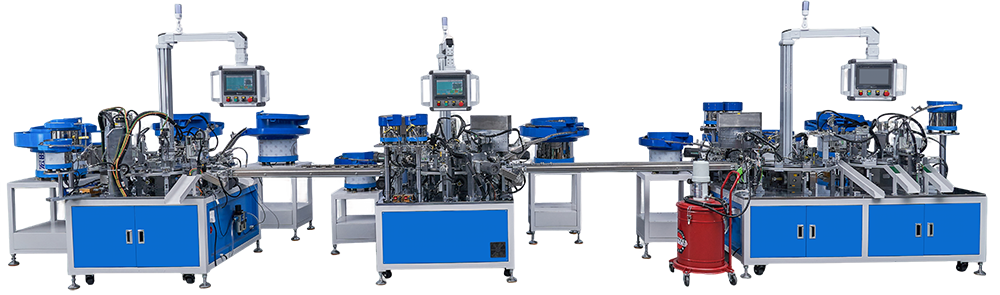

Full-Automatic Soft-closing Hinge Assembly Machine (Round Type) ZPS05

◉Space required: About 8700 x 2700 x 1900 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6-0.8 Mpa;

◉Capacity: 35-42 PCS/min

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + PLC + touch screen + motor

◉Main function: Can be used for Clip on and Fixed type

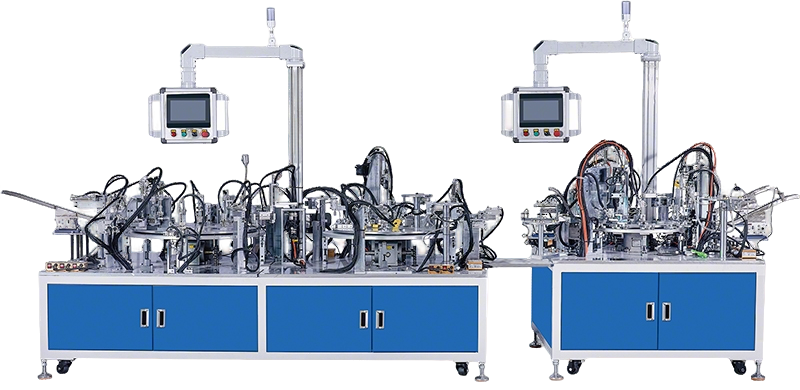

Full-Automatic Soft-closing Hinge Assembly Machine (Liner Type) ZPS06

◉Space required: About 7000 x 3200 x 2000 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6 Mpa;

◉Capacity: 40-45 PCS/min

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + PLC + touch screen + motor

◉Main function: Soft-Closing Hinge assembly machine

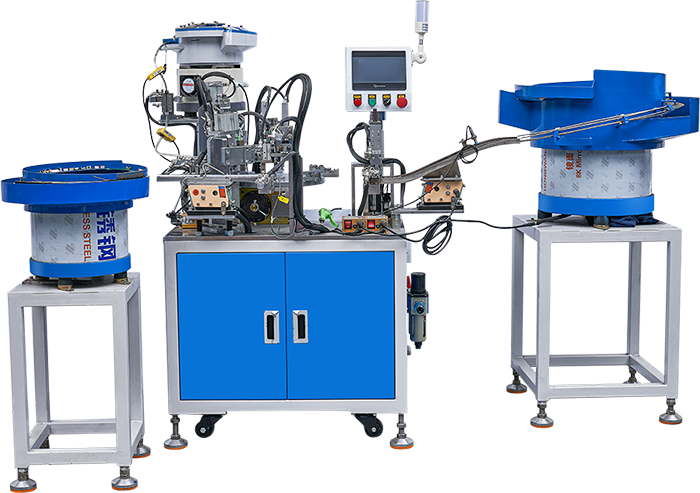

Automatic Hinge Inner Arm Assembly Machine ZPS07

◉Space required: About 2100 x 1500 x 1400 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 380V 50Hz

◉Air source: 0.6-0.8 Mpa;

◉Capacity: 35-45 PCS/min

◉Main configuration: AirTAC cylinder and solenoid valve + cylinder induction line + PLC + touch screen + motor

◉Main function: Hinge Inner Arm Assembly

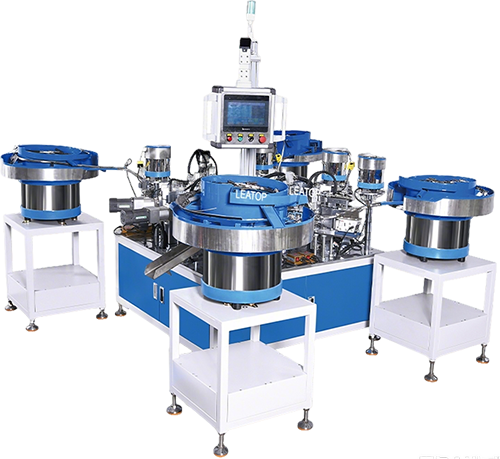

Inner Base Assembly Machine ZPS08

◉Space required: About 3000 x 3000 x 1800 mm

◉Surface of mechanical parts: hard chrome plating

◉Power supply: 220V

◉Air source: 0.5-0.7 Mpa;

◉Capacity: 35-45 PCS/min

◉Main configuration: Taiwan AirTAC cylinder + cylinder induction line + solenoid valve + PLC + servo motor + step motor + touch screen + splitter + approach switch + frequency changer

◉Main function: Assembly liner base product
